AST3001 TRI-ROLLER PORTABLE TOOL FOR MS14103-3 BEARING

AST3001 is a genuine Aero Staking product. This portable tri-roller swaging tool is designed for bearing installation and retention in compliance with key aerospace specifications including:
BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, H-19, 03-03-012, and 01-05-26

Tool Compatibility and Technical Specifications

• For Bearing Number: MS14103-3

• Bearing Groove Pitch Diameter (PD): 0.563

• Bearing Inner Diameter (ID): 0.1900

• Standard Outer Envelope of Tool: Diameter 1.250” OD

Aerospace-Quality Swaging Tool Built for Open Space Applications

Standard portable tri-roller swaging tools are intended for bearing installation in open environments where there are no tool maneuverability limitations. If your application includes elements like close walls, tabs, wide housing, oversized chamfers, or counterbores, please consult us before ordering a standard version of the tool.

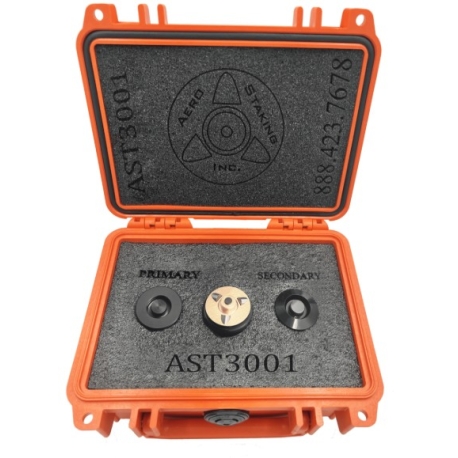

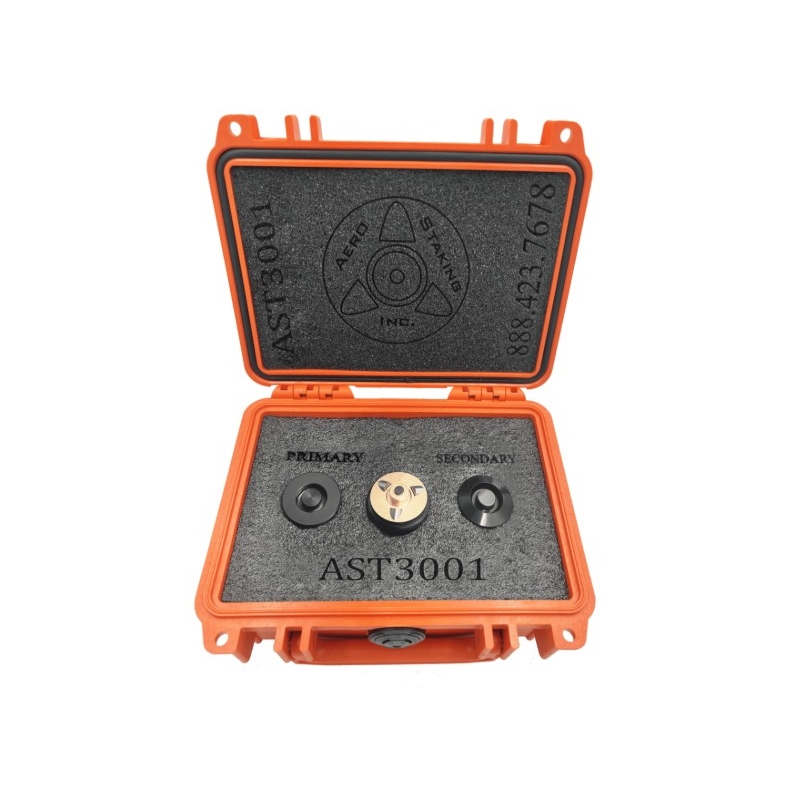

Tool Construction and Operation

The handheld tri-roller swaging tool is built from aerospace-quality, treated, and coated tool steel. It consists of the following parts:

• Flat-Surfaced Locating Fixture (Primary) – Used for the first swage

• Angled (Conical) Locating Fixture (Secondary) – Used for the second swage

• Roller Swaging Fixture (Head)

Lightweight, Portable, and Maintenance-Free

The AST3001 portable tri roller bearing swaging tool is specially designed for on-wing applications, where space is limited and reliability is essential. It’s lightweight, mobile, and easy to maintain with no weak links, making it ideal for:

• On-wing bearing retention

• Precision bearing installation

• Aerospace bearing replacement operations

Equipment Required: No Power Tool Needed

This manual tri-roller swaging tool requires no external power tools, making it a convenient, cost-effective solution for field and hangar operations.
