AST3002 TRI-ROLLER PORTABLE TOOL FOR MS14103-4 BEARING

The AST3002 Portable Tri Roller Swaging Tool is a genuine Aero Staking product, built to meet aerospace standards for bearing installation and retention. Designed for professionals working in aviation and aerospace, this precision tool complies with the following specifications:

BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012

Tool Compatibility and Dimensions

• For Bearing Number: MS14103-4

• Bearing Groove Pitch Diameter (PD): 0.563

• Bearing Inner Diameter (ID): 0.250

• Outer Envelope of Tool: 1.250” OD

Standard Portable Tri Roller Swaging Tool for Open-Space Use

The AST3002 swaging tool is a standard portable tri roller swaging tool designed for use in open areas with no maneuverability limitations. If you expect obstacles like close wall spacing, tabs, wide housing, oversized chamfers, or counterbores near the bearing, please contact us for a custom recommendation before placing your order.

Built for Aerospace Quality and Field Durability

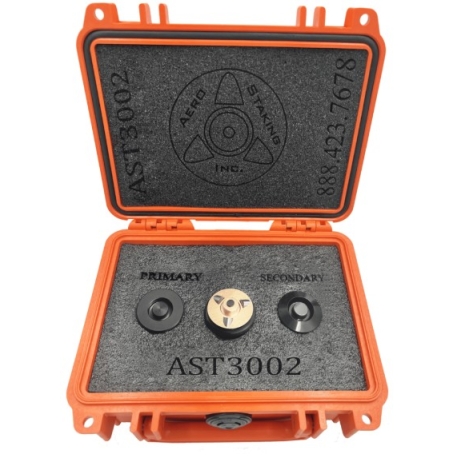

Crafted from aerospace-grade, treated, and coated tool steel, the AST3002 tri roller bearing swaging tool includes:

• Primary Flat-Surfaced Locating Fixture – For initial swage

• Secondary Angled (Conical) Fixture – For second-stage swage

• Roller Swaging Fixture (Head) – For final precision swage application

Compact, Lightweight, and Ideal for On-Wing Operations

Although designed for open spaces, the portable tri roller swaging tool is compact, lightweight, and highly reliable. It is suitable for:

• On-wing bearing replacements

• Bearing installation and retention tasks

• Maintenance operations with minimal setup

• Field repairs requiring high precision

Manual Operation – No Power Tools Required

The AST3002 tri roller swaging tool requires no external power tools, making it an easy-to-use and efficient choice for on-the-go operations. It’s rugged, low-maintenance, and built to deliver precision performance every time.
