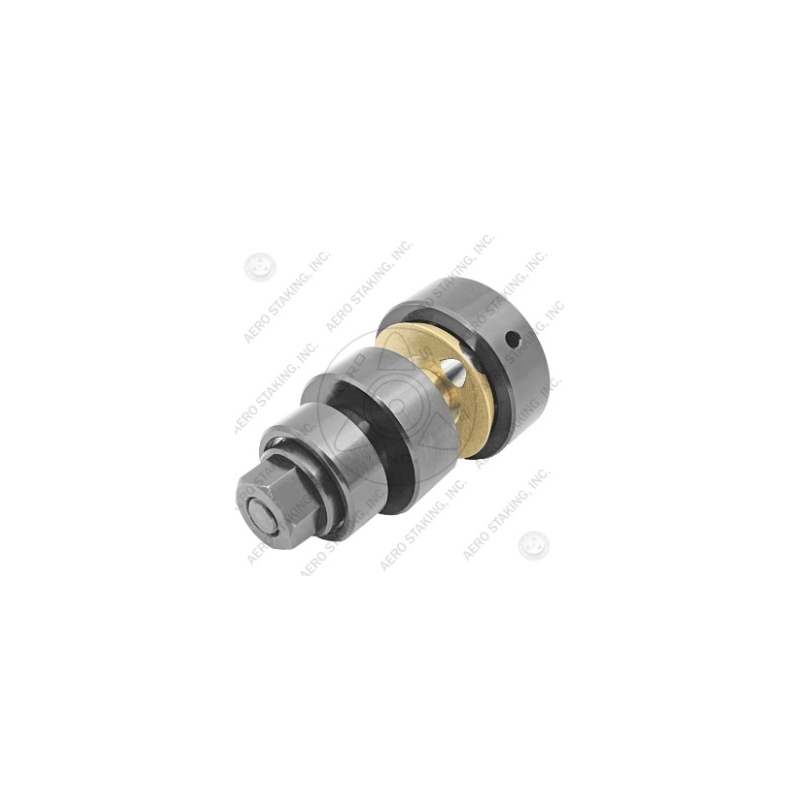

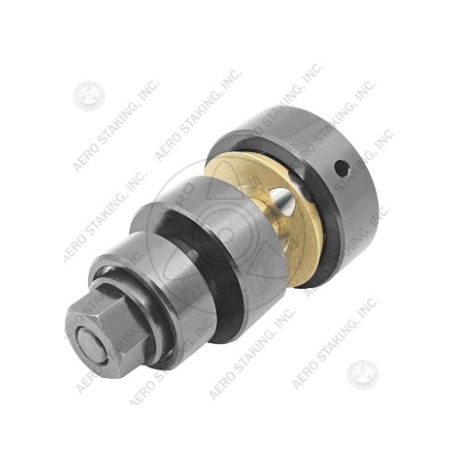

AST3009 TRI-ROLLER PORTABLE TOOL FOR MS14101-8

AST3009 is a genuine Aero Staking product. This portable tri-roller swaging tool is designed for precision bearing installation and retention, meeting the stringent requirements of:

BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012

Technical Specifications:

• For Bearing Number: MS14101-8

• Bearing Groove Pitch Diameter (PD): 0.876

• Bearing Inner Diameter (ID): 0.500

• Standard Tool Envelope: Diameter 1.500” OD

Engineered Tri-Roller Bearing Swaging Tool

Manufactured using aerospace-quality, heat-treated, and coated tool steel, this bearing swaging tool ensures reliable swaging performance in demanding environments. The AST3009 includes:

• Primary Locating Fixture (Flat-Surfaced): Used for the initial swage

• Secondary Locating Fixture (Angled/Conical): Used for the final swage

• Roller Swaging Fixture (Head): Applies consistent swaging force around the bearing groove

Perfect for On-Wing Bearing Installations

The AST3009 portable tri-roller swaging tool is designed to function efficiently in on-wing applications and tight spaces. It’s:

• Lightweight and mobile

• Easy to handle and maintain

• Free of weak points or complex assemblies

Ideal for:

• On-wing bearing installation

• Bearing retention operations

• Bearing replacements in aerospace maintenance environments

Tool Maneuverability Considerations

Standard portable tri-roller swaging tools are built for use in open workspaces with no tool movement restrictions.
If your application includes barriers like close walls, counterbores, tabs, wide housing, or oversized chamfers, please contact us prior to ordering. We’ll ensure you receive the most effective solution for your specific use case.

No Power Tools Required

This Aero Staking swaging tool is fully manual, requiring no external power tools—making it a perfect solution for remote field work and aerospace repair crews.
