> >>>AST1011 TRI-ROLLER DRILL PRESS TOOL FOR MS14101-9

AST1011 TRI-ROLLER DRILL PRESS TOOL FOR MS14101-9

AST1011

New

TRI-ROLLER DRILL PRESS TOOL FOR MS14101-9

More details

More info

For Bearing Number: MS14101-9

Bearing Groove Pitch Diameter (PD):  .970

Bearing Inner Diameter (ID): .5625

Standard Outer Envelope of the Tool: Dia 1.875” OD.

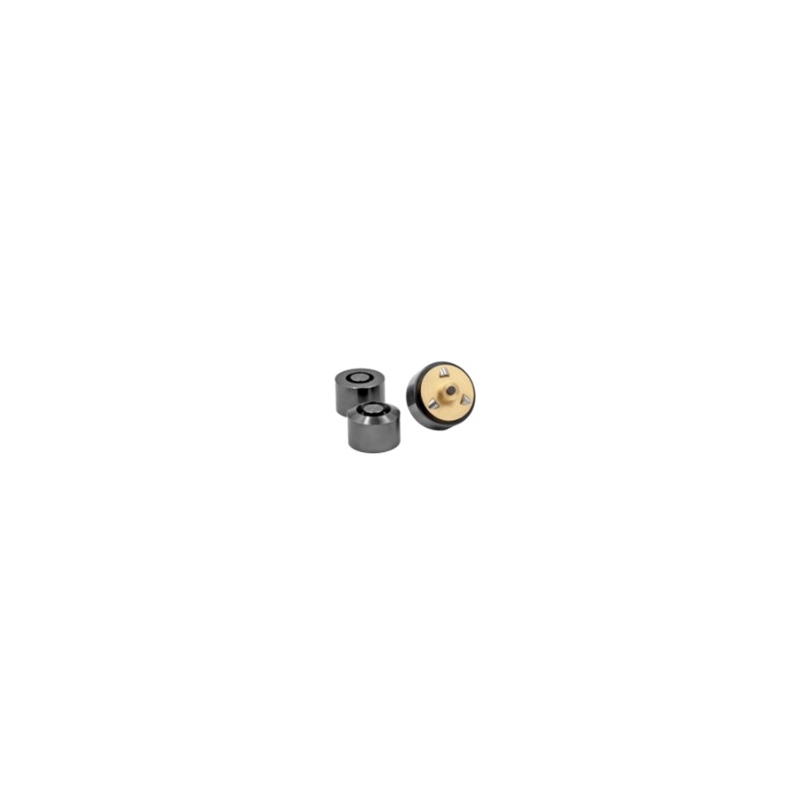

Description of the Tool:

The Drill Press Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:

  • The flat-surfaced locating fixture (primary) – used for the first swage
  • Angled (conical) surfaced locating fixture (secondary) – used for the second swage
  • Roller Swaging Fixture (head)

This tool is used primarily for small and large batch production, bearing retention, installation, and bearing replacement operations.

Equipment Required:

  • Standard knee mill, drill press, manual or CNC milling machine tool features ½ Dia shank
