AST3012 TRI-ROLLER PORTABLE TOOL FOR MS14103-9

The AST3012 is a genuine Aero Staking product, designed for precision bearing installation and bearing retention in aerospace applications. This portable tri-roller swaging tool complies with the highest industry standards, including BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012, ensuring reliability and excellent performance for aircraft maintenance.

Compatibility & Key Specifications

• For Bearing Number: MS14103-9

• Bearing Groove Pitch Diameter (PD): 1.025

• Bearing Inner Diameter (ID): 0.5625

• Standard Outer Envelope of Tool: Diameter 1.750” OD

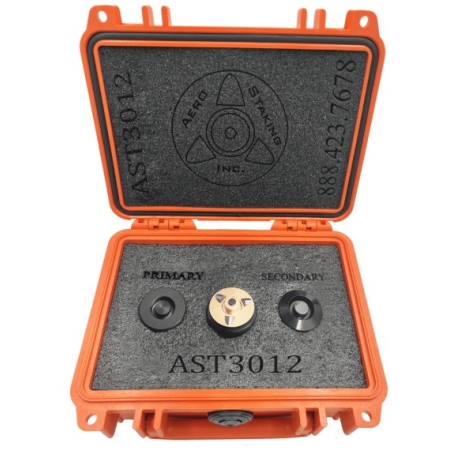

Tool Components and Features

• Flat-Surfaced Locating Fixture (Primary): Used for the first swage

• Angled (Conical) Locating Fixture (Secondary): Used for the second swage

• Roller Swaging Fixture (Head)

Designed for On-Wing Applications

The AST3012 portable tri-roller bearing swaging tool is ideal for on-wing applications and can fit into tight, constrained spaces. This tool is primarily used for on-wing repairs, bearing retention, installation, and bearing replacement operations, making it an essential tool for aerospace technicians working in limited spaces on aircrafts.

Durable, Lightweight, and Easy to Maintain

• No power tools required

• Lightweight and mobile, ensuring easy handling and portability

• Low-maintenance design with no weak links, ensuring durability over time

Equipment Required: NO POWER TOOL NEEDED

The AST3012 is a manual tool, making it an ideal choice for aerospace professionals who need to perform bearing installations and retention efficiently, without the need for power tools.
