AST3013 TRI-ROLLER PORTABLE TOOL FOR MS14101-10 BEARING

The AST3013 is a genuine Aero Staking product specifically designed for bearing installation and bearing retention. It complies with top industry standards, such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012. This versatile portable tri-roller swaging tool is engineered for both small and large batch production and on-wing bearing installation applications.

Compatibility & Key Specifications

• For Bearing Number: MS14101-10

• Bearing Groove Pitch Diameter (PD): 1.063″

• Bearing Inner Diameter (ID): 0.625″

• Standard Outer Envelope of Tool: Diameter 1.750” OD

Tool Components and Features

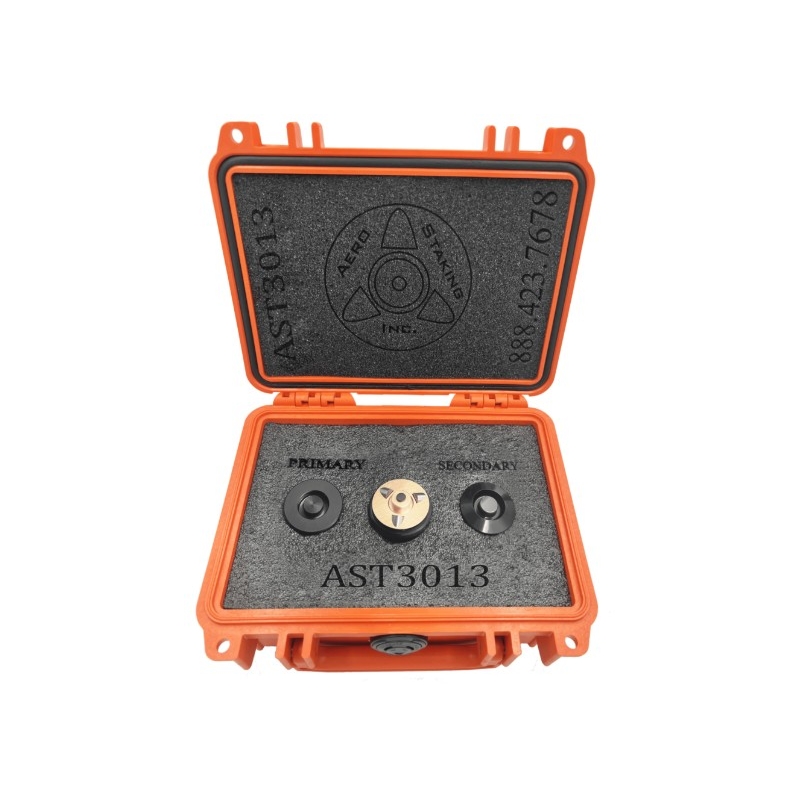

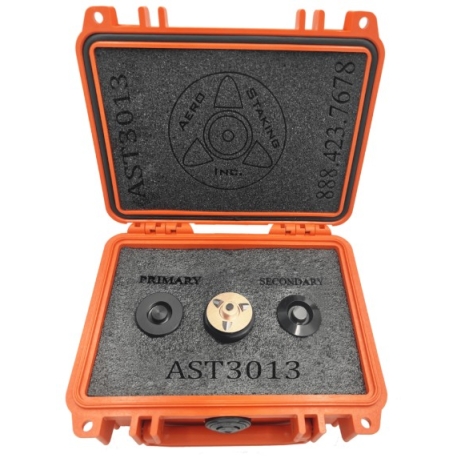

• Flat-Surfaced Locating Fixture (Primary): Used for the first swage

• Angled (Conical) Locating Fixture (Secondary): Used for the second swage

• Roller Swaging Fixture (Head): Ensures precise swaging application

Ideal for Small and Large Batch Production

The AST3013 Drill Press Swaging Tool is a reliable solution for small and large batch production tasks. It is used primarily for bearing retention, bearing installation, and bearing replacement operations in the aerospace sector. Designed for precision work, this tool is perfect for high-accuracy installations.

Versatile and Efficient

AST3013 portable tri-roller swaging tools are ideal for use in open spaces, with no tool maneuverability limitations. However, if the bearing installation involves obstacles such as walls, tabs, counterbores, wide housing, or oversized chamfers, it’s important to notify us prior to ordering a standard portable swaging tool.

Equipment Required

• Standard Knee Mill, Drill Press, or CNC Milling Machine Tool

• Tool requires a ½” Dia shank to operate efficiently

This tool is compatible with standard knee mills, drill presses, and manual or CNC milling machines, offering flexibility for both manual and machine-assisted operations.
