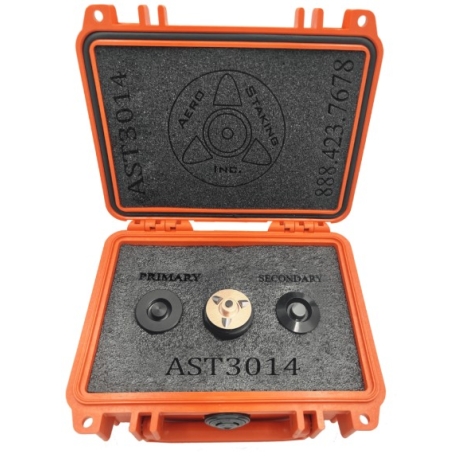

AST3014 TRI-ROLLER PORTABLE TOOL FOR MS14103-10 BEARING

High-Performance Portable Tri-Roller Swaging Tool for Bearing Installation

The AST3014 is a genuine Aero Staking product designed to meet the rigorous standards for bearing installation and bearing retention. This portable tri-roller swaging tool adheres to key specifications such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012.

Tool Compatibility & Specifications

• For Bearing Number: MS14103-10

• Bearing Groove Pitch Diameter (PD): 1.087

• Bearing Inner Diameter (ID): 0.625

• Standard Outer Envelope of Tool: Diameter 1.750” OD

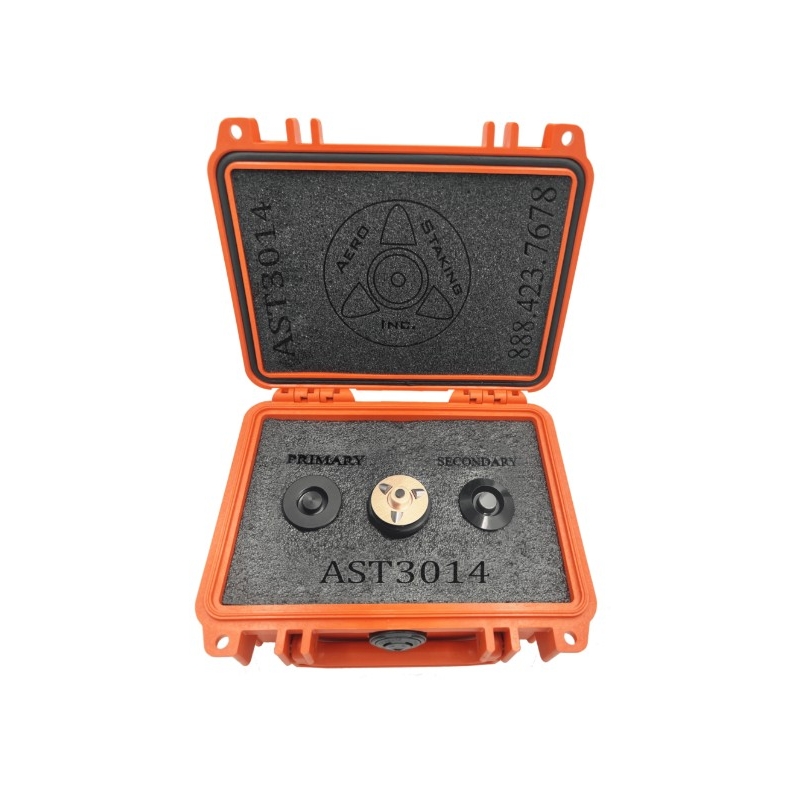

Key Features and Tool Components

• Flat-Surfaced Locating Fixture (Primary): Used for the first swage

• Angled (Conical) Locating Fixture (Secondary): Used for the second swage

• Roller Swaging Fixture (Head): Ensures consistent bearing installation

Designed for On-Wing Applications & Tight Spaces

The AST3014 portable tri-roller bearing swaging tool is optimized for on-wing applications, making it ideal for bearing retention, installation, and replacement in constrained spaces. This tool is perfect for:

• On-wing bearing repairs

• Precision bearing installation

• Bearing replacement in tight spaces

Lightweight, Mobile, and Low-Maintenance Design

• No power tools required

• Easy to maintain for long-term reliability

• Lightweight and mobile for easy use in the field

Equipment Required: NO POWER TOOL NEEDED

This manual tri-roller swaging tool provides all the portability and precision required without needing additional power equipment.
