AST3005A TRI-ROLLER PORTABLE TOOL FOR MS14101-5A BEARING

AST3005A

New

TRI-ROLLER PORTABLE TOOL FOR MS14101-5A BEARING

More details

More info

AST3005A is a genuine Aero Staking product. portable tri-roller swaging tool meets the requirements for bearing installation and retention of main specifications such as

BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, 03-03-012

For Bearing Number: MS14101-5A

Bearing Groove Pitch Diameter (PD): .660

Bearing Inner Diameter (ID): .3125

Standard Outer Envelope of the Tool: Dia 1.250” OD.

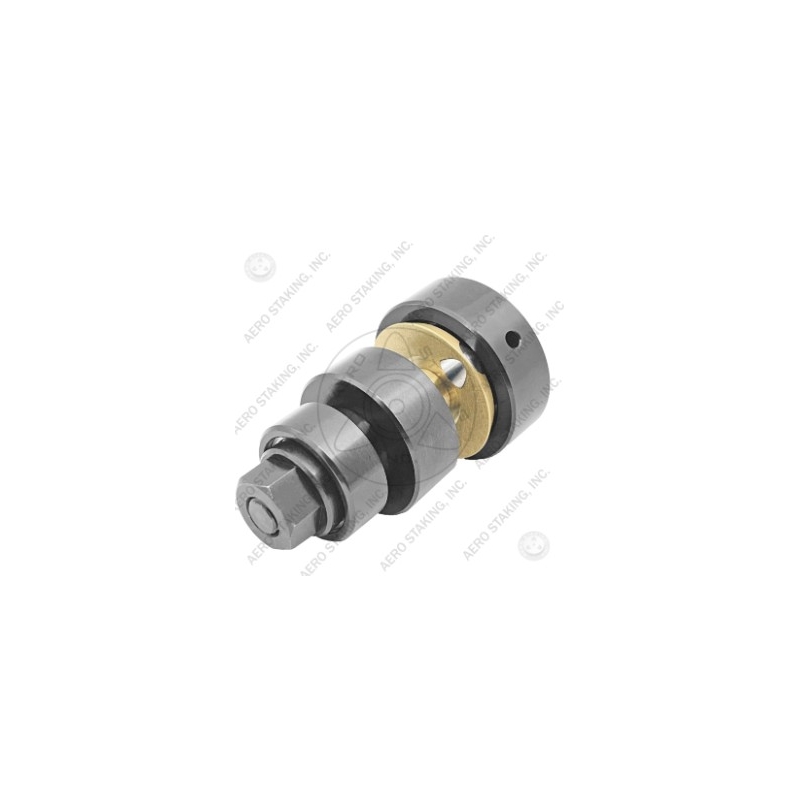

Description of the Tool:

The handheld Tri-Roller Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:
The flat-surfaced locating fixture (primary) – used for the first swage
Angled (conical) surfaced locating fixture (secondary) – used for the second swage Roller Swaging Fixture (head)
This tool is designed for ” on-wing ” applications and easily fits constrained spaces. The portable tri-roller bearing swaging tool is light and mobile, easy to maintain, and has no weak links. It is used primarily for on-wing repairs, bearing retention, installation, and bearing replacement
operations.

Equipment Required:
NO POWER TOOL NEEDED
