> >>>AST3016 TRI-ROLLER PORTABLE TOOL FOR MS14101-12 BEARING

AST3016 TRI-ROLLER PORTABLE TOOL FOR MS14101-12 BEARING

AST3016

New

TRI-ROLLER PORTABLE TOOL FOR MS14101-12 BEARING

More details

More info

The AST3016 is a genuine Aero Staking product, expertly engineered to meet the demanding standards of bearing installation and bearing retention. This portable tri-roller swaging tool is designed to meet essential specifications like BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012.

Tool Compatibility & Key Specifications

  • For Bearing Number: MS14101-12

  • Bearing Groove Pitch Diameter (PD): 1.313

  • Bearing Inner Diameter (ID): 0.750

  • Standard Outer Envelope of Tool: Diameter 1.875” OD

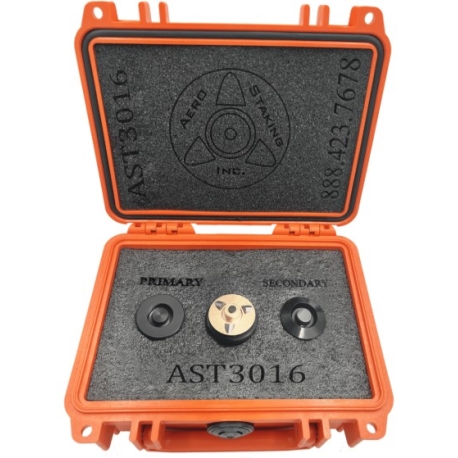

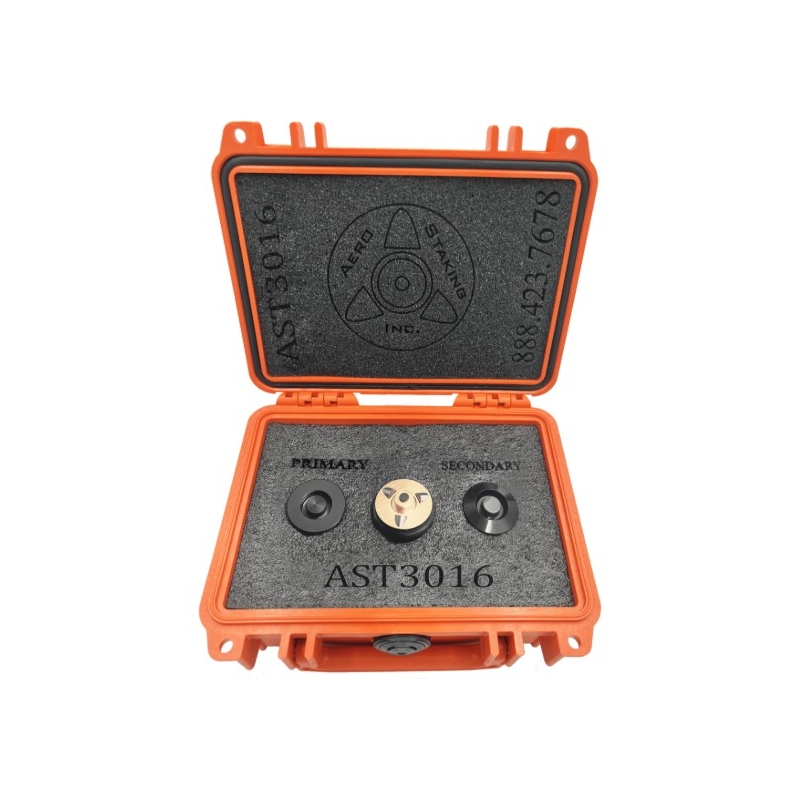

Tool Components

  • Flat-Surfaced Locating Fixture (Primary): Used for the first swage

  • Angled (Conical) Locating Fixture (Secondary): Used for the second swage

  • Roller Swaging Fixture (Head): Delivers precise swaging

Optimized for On-Wing Applications & Tight Spaces

The AST3016 portable tri-roller bearing swaging tool is designed for on-wing applications, ideal for bearing retention, installation, and bearing replacement in constrained spaces. It is perfect for:

  • On-wing bearing repairs

  • Bearing installation in tight areas

  • Bearing replacement operations

Lightweight and Low-Maintenance Design

  • Easy to maintain

  • Lightweight and mobile

  • No power tools required for operation

Equipment Required: NO POWER TOOL NEEDED

This manual tri-roller swaging tool is simple to use without any power equipment, making it perfect for portable, field-based operations.
