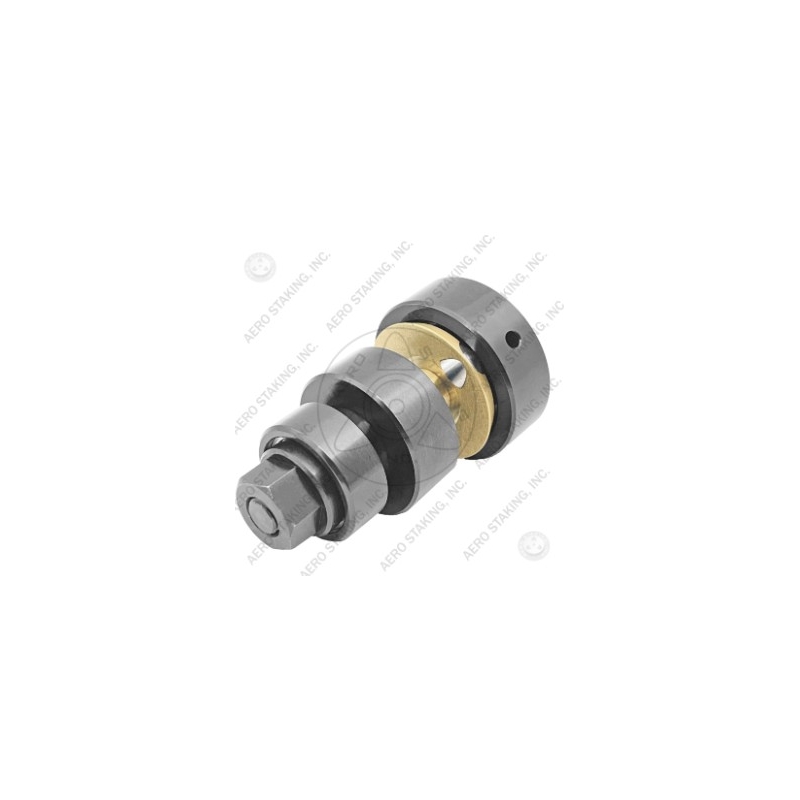

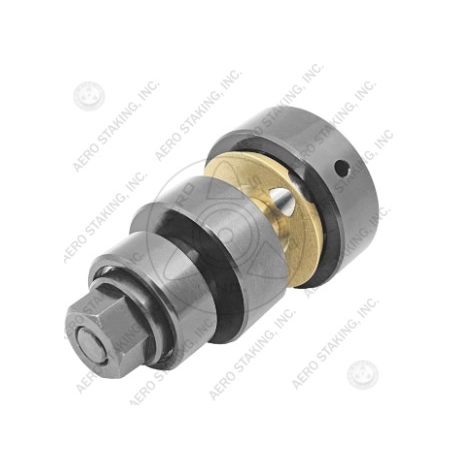

AST3020 TRI-ROLLER PORTABLE TOOL FOR MS14103-16 BEARING

The AST3020 Portable Tri-Roller Swager is an original Aero Staking bearing swaging tool, precision-engineered for aerospace-grade bearing installation and retention. This tri roller swager complies with strict industry specifications such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012.

Specifications:

• For Bearing Number: MS14103-16

• Bearing Groove Pitch Diameter (PD): 2.001

• Bearing Inner Diameter (ID): 1.000

• Tool Outer Envelope: Diameter 2.565” OD

Key Features of the AST3020 Tri Roller Swager

This portable tri-roller swaging tool is manufactured using aerospace-grade treated and coated tool steel. As a high-precision bearing swaging tool, it includes the following essential components:

• Flat-Surfaced Locating Fixture (Primary): Used for the first swage

• Angled (Conical) Locating Fixture (Secondary): Used for the second swage

• Roller Swaging Fixture (Head): Provides uniform and reliable swaging

Portable Design for On-Wing Applications

Designed specifically for on-wing repairs, the AST3020 portable tri roller swager fits easily into constrained or hard-to-reach spaces. Its compact and lightweight design ensures quick, efficient, and precise operation — all without the need for power tools.

Ideal for Aerospace Bearing Installation & Retention

Whether you’re replacing bearings or conducting bearing retention operations, this Aero Staking swaging tool is your go-to solution. The AST3020 is perfect for both standard and limited-access spaces, offering unmatched maneuverability and performance.

If you anticipate obstacles such as close walls, tabs, counterbores, wide housing, or oversized chamfers near the bearing, please consult us prior to placing your order to ensure compatibility with your specific bearing swaging tool needs.

No Power Tools Required

The AST3020 Tri Roller Swager operates manually and does not require any power tools, making it highly mobile and field-serviceable.

Why Choose Aero Staking Swaging Tools?

With decades of precision engineering, Aero Staking bearing swaging tools like the AST3020 ensure reliability, safety, and top-tier performance in every aerospace maintenance or installation project.
