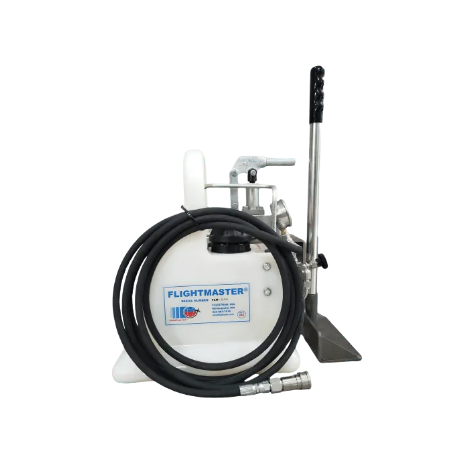

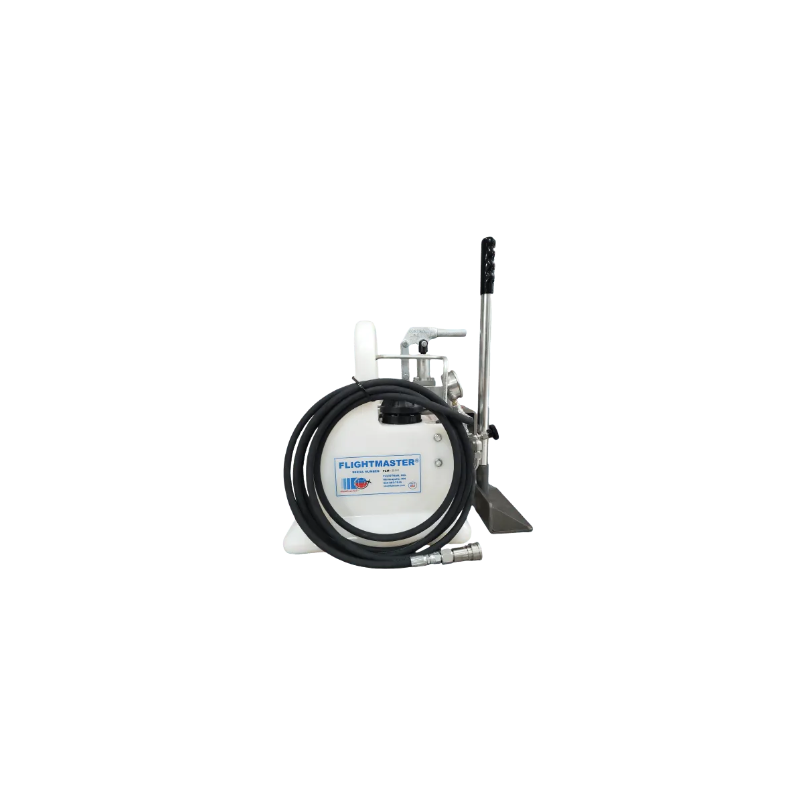

Cowl Pump Thrust Reverse Servicing Unit 2.25 US Gal
FT-2GC-B-XXXX-000
New
The 2 Gallon Cowl (2.25 US GAL) Thrust Reverse service pump is an open system fluid dispenser designed to service commercial and military aircraft.
Data sheet
| Weight | 30 lbs |
| Capacity | 2.25 US Gal. / 8.52 Liters |
More info
It is hand operated consisting of a reservoir, high pressure pump assembly, filter assembly, and a Parker Hydraulics high pressure fluid delivery hose. The pump handle has a medium knurl finish to provide a slip free grip. It is appropriate for all MIL SPEC fluid requirements and is delivered fully assembled and ready to use. NOTE: It comes equipped with an EATON Aeroquip LL2H8 service coupler. Different coupler is available upon request.
| SPECIFICATIONS (Pump model 500-060) | |
| Reservoir capacity: | 2.25 US Gal. / 8.52 Liters |
| Pump Outlet max pressure: | 3,500 psi / 241.32 bar |
| Operating pressure relief: | 2,500 psi / 172.37 bar |
| Volume per stroke: | .58 Cubic in. * / 9.50 cc |
| * approx .32 oz (US) | |
| Force per 100 psi requirements: | 24" handle = 3.2 lbs / 100 psi |
| Delivery hose (rated to 5,000 psi) | 15 foot / 4.57 meters |
| Net Weight (empty): | 30 lbs / 13.61 Kg |
| with optional cart: | 52.50 lbs / 23.81 Kg. |
| Filter rating: | 10 micron nominal, SS standard |
| Container Composition: | Translucent High Density Polyethylene (rated for all fluid types) |
|
* WARNING |
|
ALL Servicing procedures MUST be in accordance with airline / manufacturer's specifications. * DO NOT MIX FLUID * |
|
** To order a 2 Gallon pump only, advise of the fluid type and any options so we can custom build accordingly. ** To order the 2 Gallon pump with the optional hand cart, advise of the fluid type. P/N FT-2GC-B-XXXX-HC0 |
|
Fluid Type: |
|
Turbo 2197, Eastman 2380, Exxon 2380, CSD/IDG/APU, Engine oil, 5606, Royco 777, Castrol Aero 35, Castrol Aero 45, Mobil 254, Mobil Jet II, Hyjet IV, HyJet V, Hydraulic, Skydrol, Skydrol (LD-4; PE-5), Skydrol 500B-4. |
|
***Custom Placard available |
