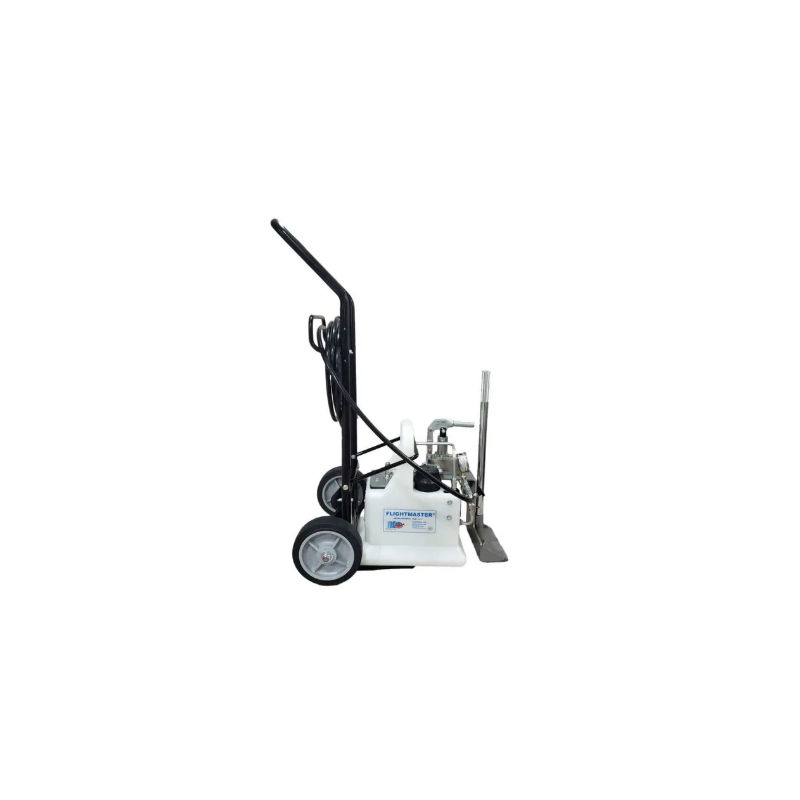

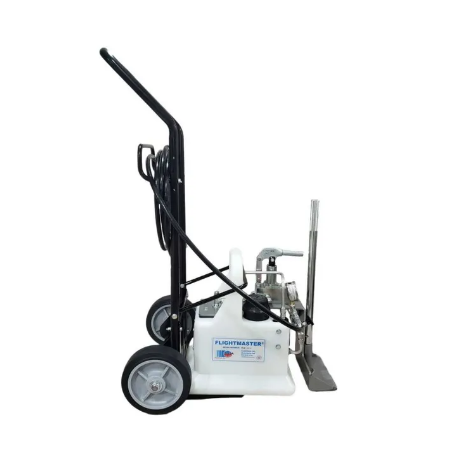

Cowl Pump Thrust Reverse Servicing Unit with Hand Cart (2.25 US Gal)

It is hand operated consisting of a reservoir, high pressure pump assembly, filter assembly, and a Parker Hydraulics high pressure fluid delivery hose.  The pump handle has a medium knurl finish to provide a slip free grip.  It is appropriate for all MIL SPEC fluid requirements and is delivered fully assembled and ready to use.  NOTE:  It comes equipped with an EATON Aeroquip LL2H8 service coupler.  Different coupler is available upon request.

SPECIFICATIONS (Pump model 500-060)

Reservoir capacity:                           2.25 US Gal.  / 8.52 Liters

Pump Outlet max pressure:               3,500 psi / 241.32 bar

Operating pressure relief:                  2,500 psi / 172.37 bar

Volume per stroke:                           .58 Cubic in. * / 9.50 cc

* approx .32 oz (US)

Force per 100 psi requirements:         24" handle = 3.2 lbs / 100 psi

Delivery hose (rated to 5,000 psi)      15 foot / 4.57 meters

Net Weight (empty):                         30 lbs / 13.61 Kg

                 with optional cart:            52.50 lbs / 23.81 Kg.

Filter rating:                                     10 micron nominal, SS standard

Container Composition:                     Translucent High Density Polyethylene (rated for all fluid types)

* WARNING

ALL Servicing procedures MUST be in accordance with airline / manufacturer's specifications.  * DO NOT MIX FLUID *

** To order a 2 Gallon pump only, advise of the fluid type and any options so we can custom build accordingly.

** To order the 2 Gallon pump with the optional hand cart, advise of the fluid type.

Fluid Type:  Turbo 2197, Eastman 2380, Exxon 2380, CSD/IDG/APU, Engine oil, 5606, Royco 777, Castrol Aero 35, Castrol Aero 45, Mobil 254, Mobil Jet II, Hyjet IV, HyJet V, Hydraulic, Skydrol, Skydrol (LD-4; PE-5), Skydrol 500B-4.

***Custom Placard available
