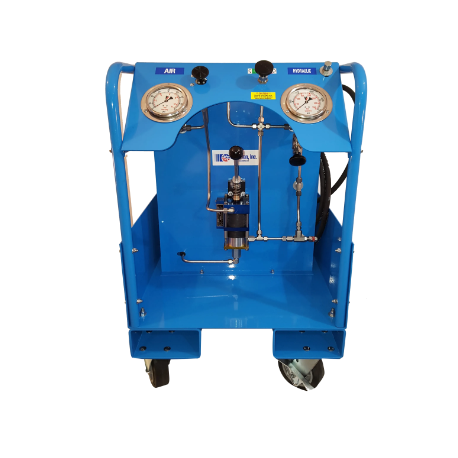

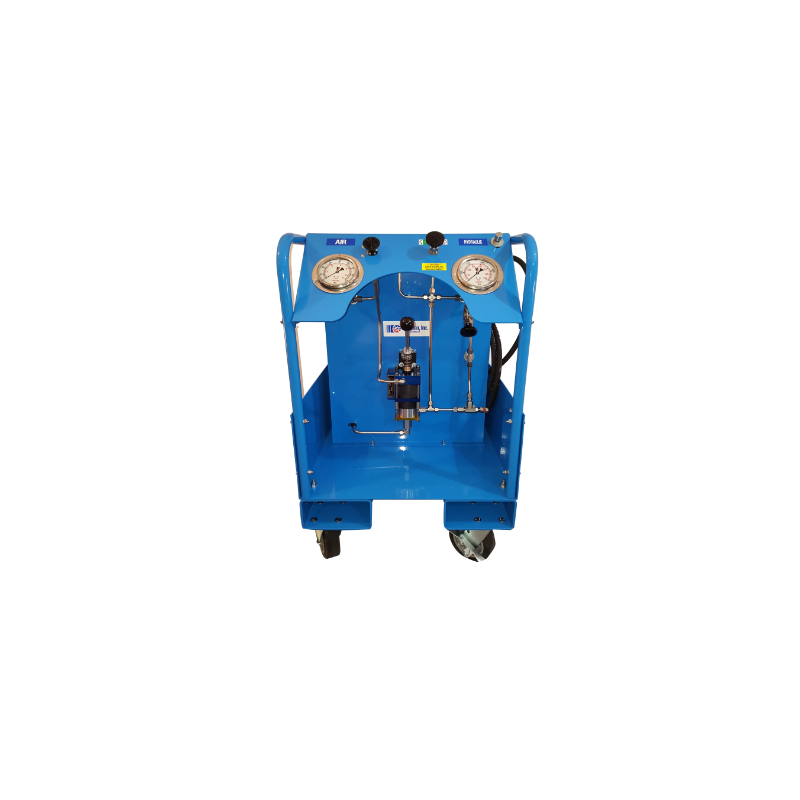

Cowl - Thrust Reverser Cart Servicing System
New
The hydraulic cart system safety stores and dispenses fluid for servicing engine cowls and thrust reverser systems.
Data sheet
| Height | 40 |
| Width | 26 |
| Length | 26 |
| Weight | 120 lbs (empty) |
| Capacity | 5 US Gal. |
| Applicability Aircraft / Engines | Engine Cowling & Thrust Reverser |
More info
It is mounted on heavy duty wheels for easy movement around the shop / hangar or can be transported by forklift to other location.
Each Systems includes:
5 Gallon capacity container
Full hard lined stainless steel tubing
Fluid compatible seals and hoses
Service Points:
Engine Cowling
Thrust Reverser
Available options:
25 Ft. Pressure Hose
Closed System Kit
Specification
Fluid Capacity: 5 US Gal. / 19 Liters
Operational Pressure Output: 4,200 psi / 28.958 kPA
Output per manual stroke: 0.15 Cubic in.
Standard Hose Length: 15 Ft. / 4.5 Meters
Container Composition: Polyethylene natural
Dual Standard Filters: 25 micron SS suction side
10 micron SS Return side
* WARNING
ALL Servicing procedures MUST be in accordance with airline / manufacturer's specifications. * DO NOT MIX FLUID *
