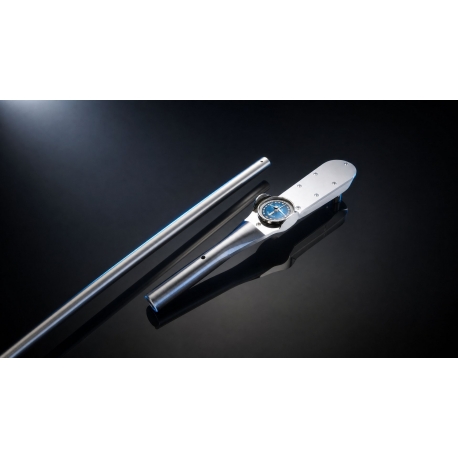

D4F600CFNM DIAL TRQ 3/4DR 120-600FTLB/160-800NM
D4F600CFNM
New
DIAL TRQ 3/4DR 120-600FTLB/160-800NM
More info
The Dial Type Wrench provides an excellent solution for many applications. The wide range of scales makes selecting the appropriate tool easy. Accurate to 2% of the reading from 20% of full scale to full scale clockwise and counterclockwise, the Dial Type Wrench is the most accurate torque wrench family. The Dial Type Wrench is the only wrench that is not affected by the hand-hold position on the wrench.
Square Drive Size: 3/4"
Length (including extension handle): 39-31/32"
Effective Length: 36"
Width: 3-1/8"
Overall Height: 3-5/8"
(w/light signal option): 3-15/32"
Weight: 7.60 LBS.
(w/plastic case): 9.98 LBS.
(w/light signal option): ADD .17 LBS.
Finish: Nickel / Chrome
Meets or Exceeds the following Specifications:
GGG-W-686C, ANSI B107.14M
Included Extension Handle: TE91TQPA
Length: 24"
- Drive Size: 3/4"
- Drive type: Fixed drive
- Primary units: N.m
- Capacity: 160 - 800
- Increments: 20
- Second units: lb.ft
- Second Capacity: 120 - 600
- Incs: 20
- Memory: Yes
- Lighted: No
- Precise: No
*** The images shown on this page are for illustration purposes only and may not be an exact representation of the product ***
