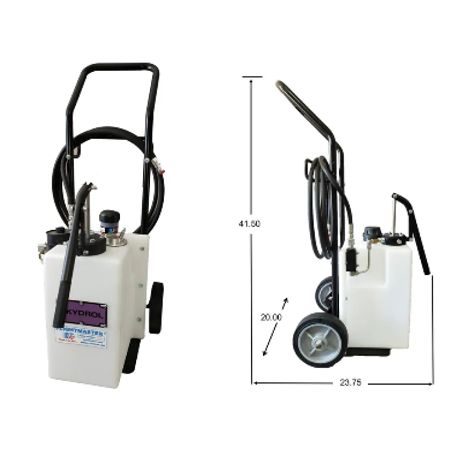

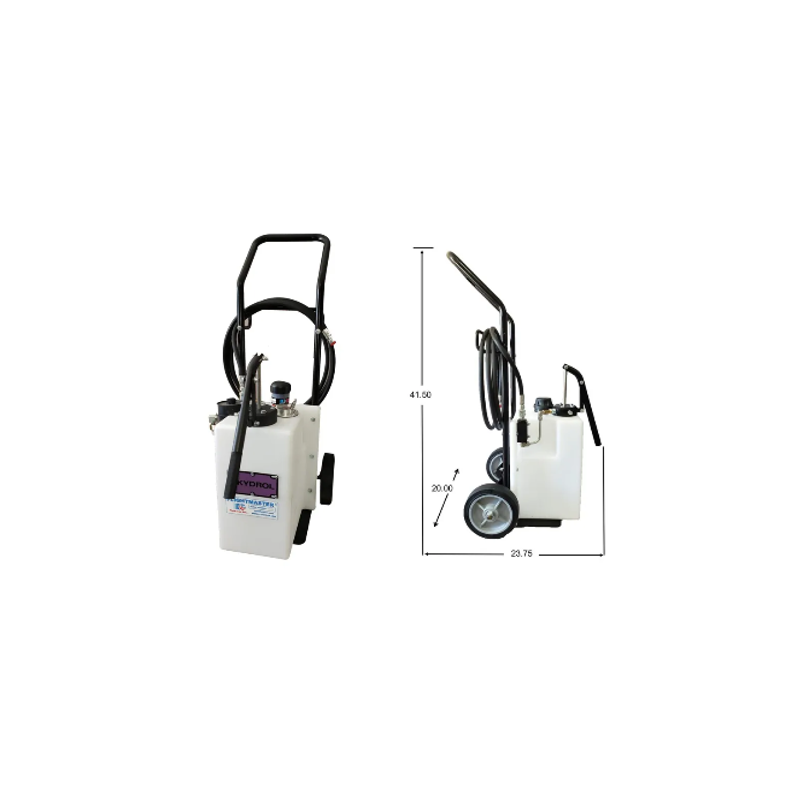

Fluid Dispenser 5 US GAL. (18.9 L) - Skydrol (LD-4, PE-5)
FD5.0 - Mfr. P/N FT-B05-D-0233
New
The manual fluid dispenser system safely stores, transports and dispense engine oil, hydraulic or other service units. It requires little maintenance, providing years of dependable service. For use with Skydrol (LD-4, PE-5).
Data sheet
| Height | 41.50 in |
| Width | 20.00 in |
| Length | 23.75 in |
| Weight | 45 lbs |
| Capacity | 5.0 US GAL |
More info
| Low Pressure Dispenser |
| Fluid Capacity: 5.0 US Gal (18.9 L) |
| Pressure Output: 125 psi (861.8 kPA) |
| Output per stroke: 7.2 Cubic In. (118 CC) |
| Hose Length: 15 ft. standard |
| Standard Filter: 10 Micron |
| * WARNING |
| ALL Servicing procedures MUST be in accordance with airline / manufacturer's specifications. * DO NOT MIX FLUID * |
|
** To order a 2.5 US Gallon dispenser, advise of the fluid type and any options so we can custom build accordingly. |
| Fluid Type: |
| Turbo 2197, Eastman 2380, Exxon 2380, CSD/IDG/APU, Engine oil, 5606, Royco 777, Castrol Aero 35, Castrol Aero 45, Mobil 254, Mobil Jet II, Hyjet IV, HyJet V, Hydraulic, Skydrol, Skydrol (LD-4; PE-5), Skydrol 500B-4. |
|
***Custom Placard available |
| **** Add on options available (add as many items as needed to configure your dispenser: Ex, H3TD04; for 25FT Hose, totalizer and coupler) |
|
000 - No Changes or add-ons from standard configuration |
| H1 - 7 Foot delivery hose |
| H2 - 15 Foot delivery hose |
| H3 - 25 Foot delivery hose |
| SM - Standard Meter without totalizer function |
| TM - Totalizer, mechanical display |
| TD - Totalizer, digital display |
| HC - 2 Gal Cowl optional hand cart |
| S1 - Spin on filter, 10 micron, 3.5 in. length (2 Gallon Dispenser) |
| S2 - Spin on filter, 10 micron, 6.0 in. length (5 Gallon Dispenser) |
| SW - Water stop filter (spin-on option only; specify above length) |
| MS - Metal filter, 10 micron SS (for 1.000 psi + applications) |
| CC - Closed containment |
| 01 - CSD / APU service coupler - Fill side |
| 02 - CSD / APU service coupler - Over Fill Side |
| 03 - Skydrol service coupler (Boeing) |
| 04 - Skydrol service coupler (Airbus) |
| 05 - APU reservoir J-Hook tool |
| 06 - Military Standand (MS/AN) straight service tool |
