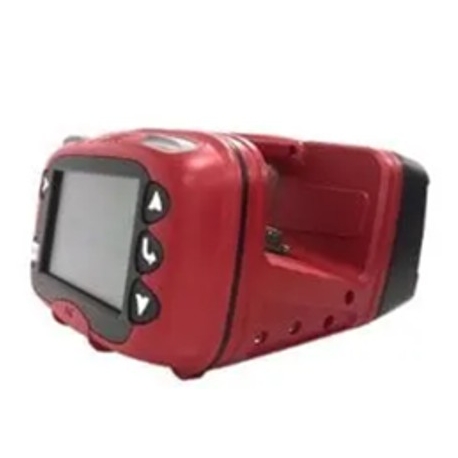

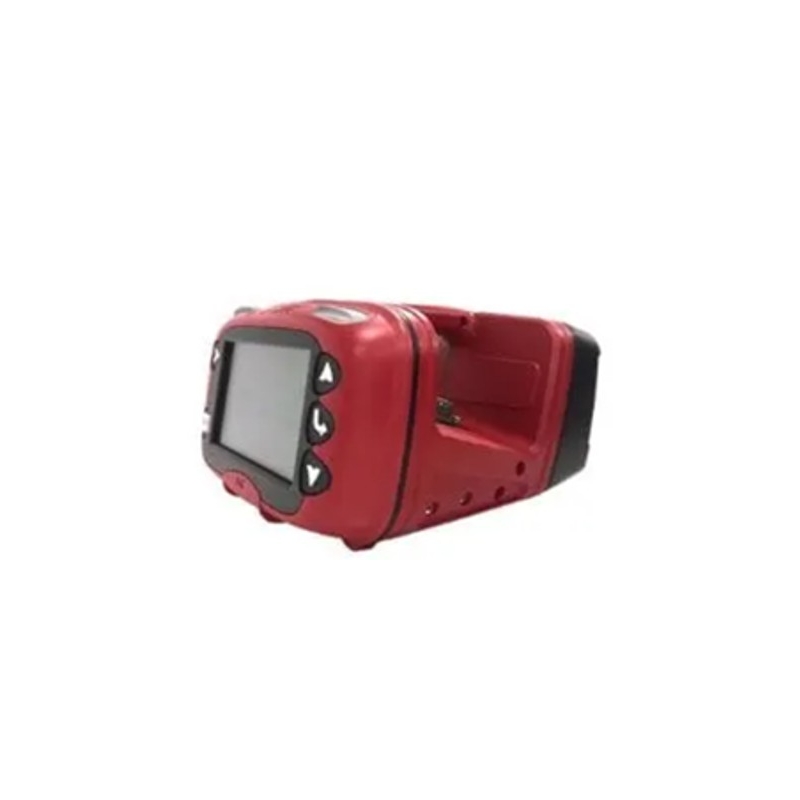

ExLRT - INTRINSICALLY SAFE, LOOP RESISTANCE TESTER

The ultimate tool to carry out prescribed loop resistance testing on aircraft during maintenance, the ExLRT is certified by all global standards as safe for use in high-risk flammable zones.  It’s small and light enough to be used by a single operator, and automatically records all test data, eliminating the need for paper records.

Product Highlights

• Boeing part number XLR-9703-01
• Alternative to BAE LRT 906-10246-3 - both tools are approved and specified by Boeing in the AMM
• 200Hz frequency
• Ex ia IiA T3 Ga (60079-11) Certified
• Loop test resistance range from 0.5mΩ to 4000mΩ
• Joint test resistance range from 0.05mΩ to 4000mΩ
• Dimensions 150mm length x 200mm width x 300mm depth (6 x 8 x 11.8 inches)
• Weight 3kg (6.6lbs)
• Large backlit LCD screen
• Text instructions to guide operator through the test when in automatic mode
• Record Mode enables recording of measurements for upload to a PC - info sheet download available here.
• View, edit and delete measurements using record mode
• Self calibration saves up to 2 months on turnaround time
• Wearable options including belt clip
• Powered by MKAT test management software, rated ‘easy to use’ by 90% of our customers.
• Battery designed to last for a full 8hr shift without requiring a recharge
• Battery can be charged without removal or after being removed from device

Why Choose EXLRT

• Approved for use on Boeing Aircraft - named as a specified tool (XLR-9703-01) in the AMM
• Lightweight and portable – 80% lighter than LRT 906-10246-3
• Certified to all global standards as safe for use in fueled aircraft
• Single operator use
• Backlit screen for easy reading in any conditions
• Controls on the probes to speed up testing
• Removable batteries means no tool down-time
• Automatic pass/fail status indication and reporting
• Proven ROI within 12 months
• 77% reduction in time spent on data collection, management and error correction compared to an LRT.
