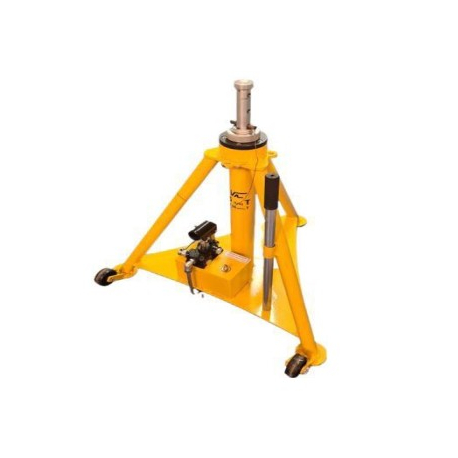

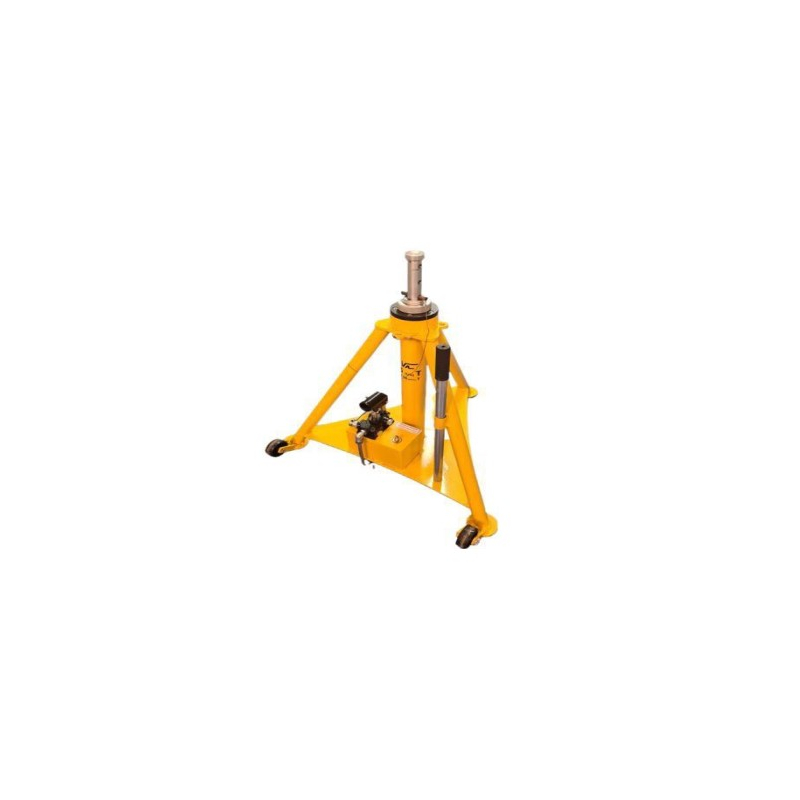

VAPOD-05-ATR-NLG Tripod Jack NLG, 5 Ton ATR
VAPOD-05-ATR-NLG
New
Tripod Jack Nose 5 US TON
Data sheet
| Capacity | 5 TON (US) |
| Applicability Aircraft / Engines | ATR NOSE LANDING GEAR |
| ECCN Number | EAR99 |
More info
Tripod Jack Nose 5 US TON
| Technical Information: |
| Maximum extended height: 1631 mm |
| Minimum retracted height: 769 mm |
| Hydraulic Stroke: 560 mm. |
| Mechanical Stroke: 305 mm |
| Working Load: 5 US Ton |
| Working Pressure: 1945 Psi / 135 bar. |
| Tank Capacity: 2.5 liters. |
*** The images shown on this page are for illustration purposes only and may not be an exact representation of the product ***
