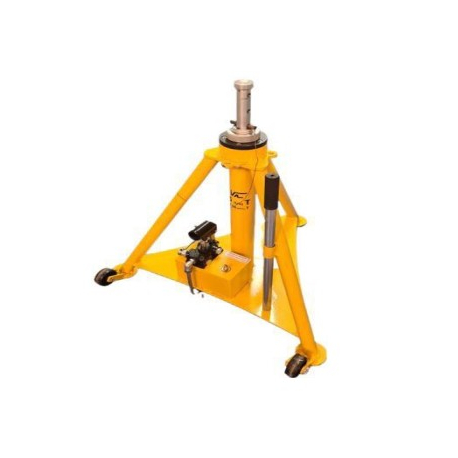

VAPOD-12-ATR-WING Tripod Jack WING, 12 Ton ATR
VAPOD-12-ATR-WING
New
Tripod Jack Wing 12 US TON
Data sheet
| Height | 107.87" |
| Weight | 150 lbs |
| Capacity | 12 TON (US) |
| Applicability Aircraft / Engines | ATR WING |
| ECCN Number | EAR99 |
More info
Tripod Jack Wing 12 US TON
| Technical Information: |
| Closed Height: 2740 mm |
| Hydraulic Extension: 819.2 mm |
| Fully Extended: 3910 mm |
| Working Load: 12 Us Ton / 10.8 Metric Ton |
| Working Pressure: 1945 psi / 135 bar |
| Tank Capacity: 9 liters |
| Weight: 150 lbs |
*** The images shown on this page are for illustration purposes only and may not be an exact representation of the product ***
