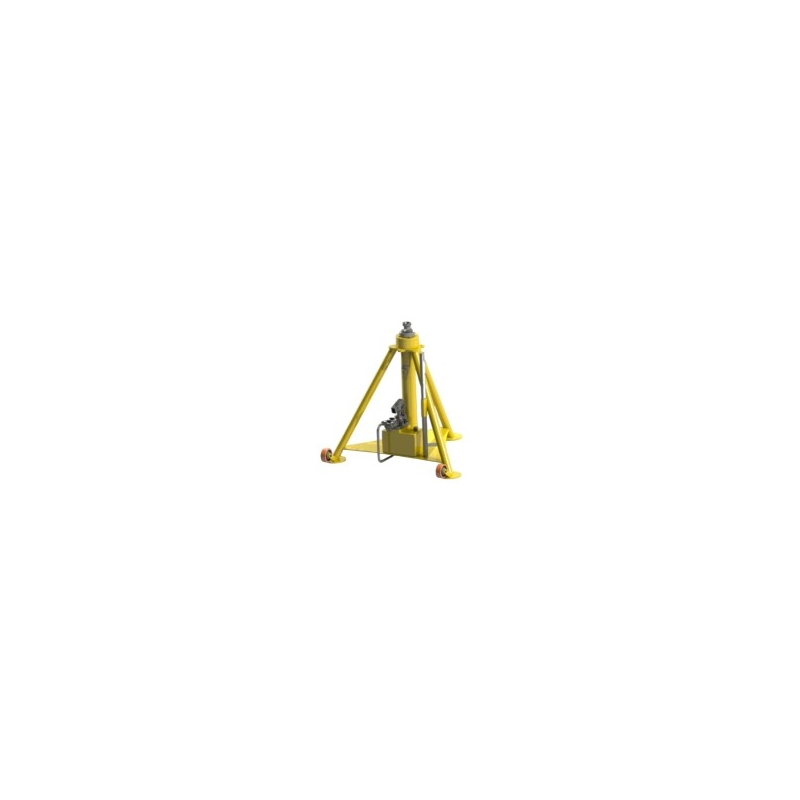

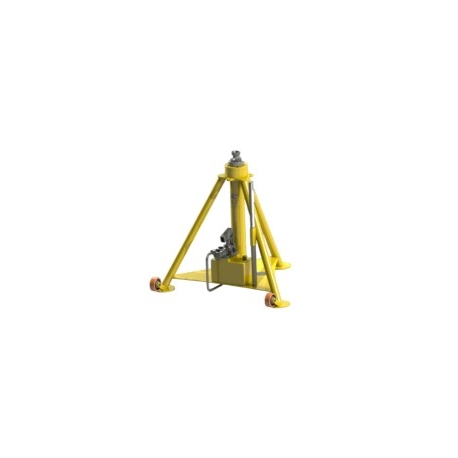

VAPOD-6-2283-97 Tripod Jack 6 US Ton
VAPOD-6-2283-97
New
Tripod Jack 6 US TON
Data sheet
| Height | 2060MM Max extended height |
| Weight | 190 LBS |
| Capacity | 6 TON (US) |
| Applicability Aircraft / Engines | ERJ135/140/145, LEGACY-600/650, PILATUS PC-24 |
| ECCN Number | EAR99 |
More info
The VAPOD-6-2283-97 is a 6 Tons tripod-jack used on the tail, nose, or wing of the plane, featuring a maximum extended height of 2060 mm, hydraulic stroke of 860 mm and minimum closed height of 970 mm.
APPLICATIONS
Embraer ERJ-135, Embraer ERJ-140, Embraer ERJ-145, Embraer Legacy 600, Embraer Legacy 650, Pilatus PC-24.
